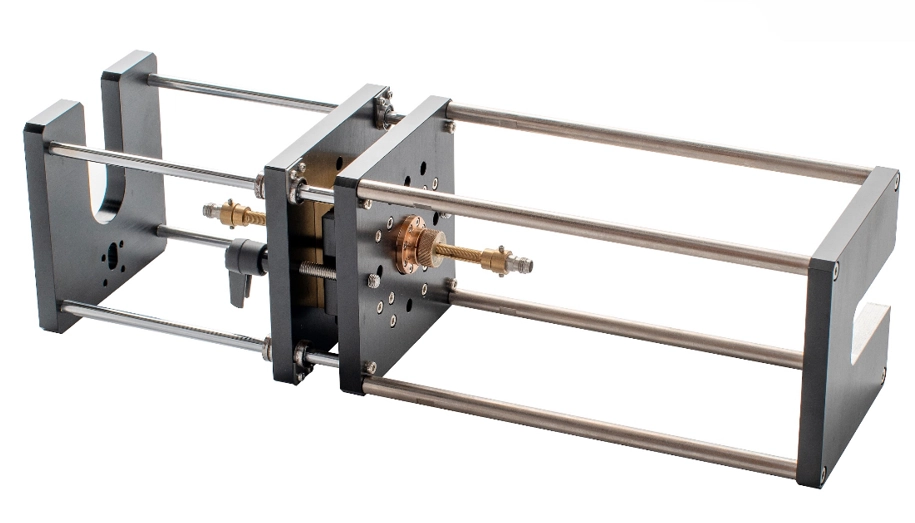

BCDR – Circular Disk Resonator
Ultra-Wideband Dk/Df Characterization (10 GHz – 110 GHz)
The BCDR system represents the next generation of dielectric measurement, offering an industry-leading frequency range and unmatched operational efficiency. Engineered to overcome the limitations of traditional setups, the BCDR provides a seamless, high-speed solution for multi-point material analysis.
Key Advantages
- Industry-Leading Bandwidth: Achieve continuous, multi-frequency measurements across an expansive 10 GHz to 110 GHz range, making it the ideal solution for 6G and automotive radar applications.
- Next-Gen Ergonomics: We have completely redesigned the loading mechanism to eliminate the installation complexities of previous BCDR generations. Experience tool-free, simplified sample placement that reduces user error.
- Rapid, Repeatable Data: Optimized for high-throughput environments, the BCDR delivers exceptional measurement reproducibility with significantly faster cycle times than standard resonators.
- Thermal Versatility: Engineered for reliability under extreme conditions, fully supporting high and low-temperature environmental testing for comprehensive material profiling.
- Universal VNA Integration: Designed for total flexibility, the BCDR is fully compatible with all leading Vector Network Analyzer (VNA) brands and platforms.
Technical Summary for the Header
"The ultimate wide-spectrum solution for multi-point, low-loss tangent measurements from 10 GHz to 110 GHz."
