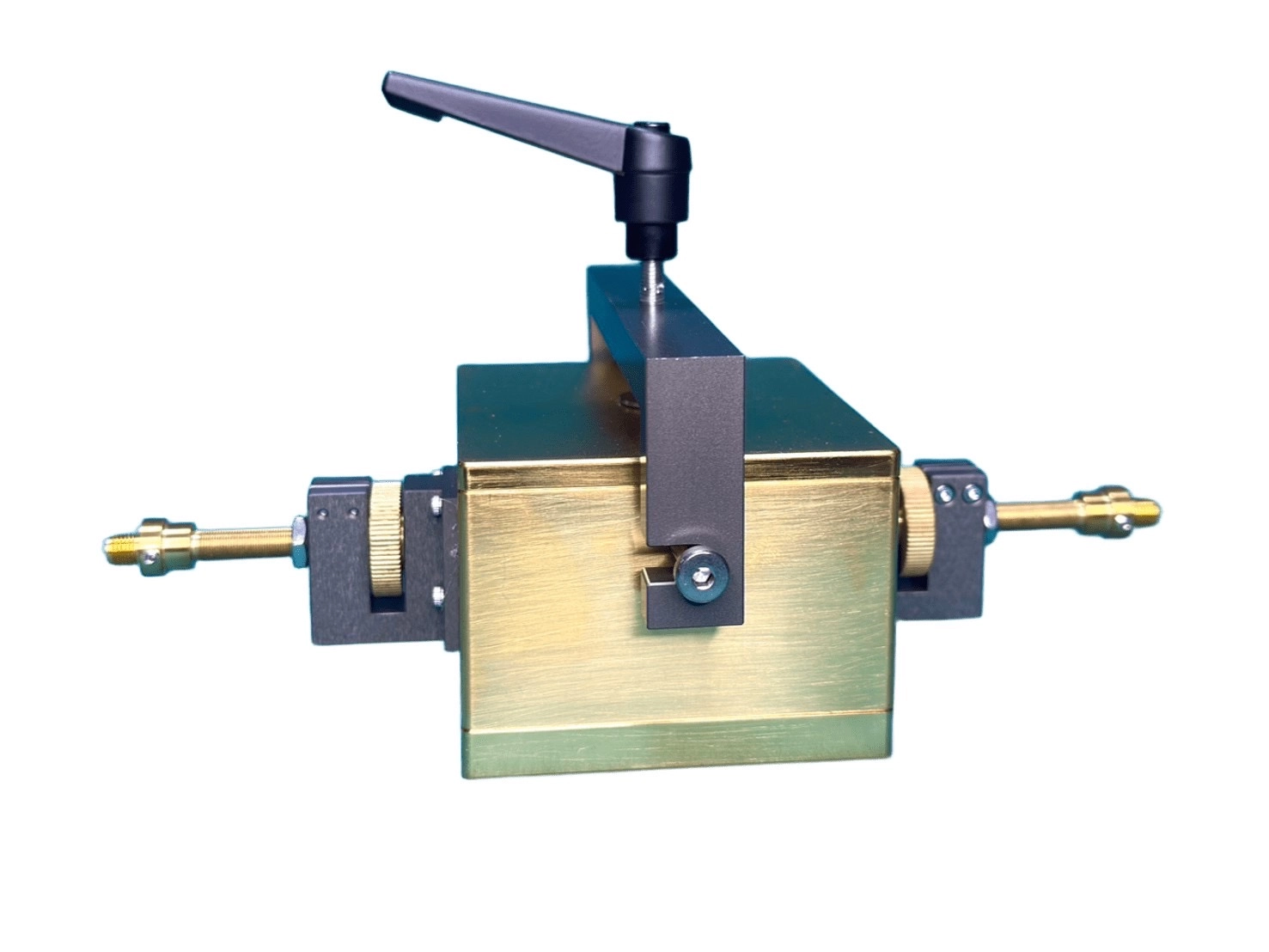

PLS100 – 3-in-1 Universal Resonant Cavity
The Ultimate All-State Characterization Solution for Liquids, Powders, and Solids
The PLS100 is a highly adaptable resonant cavity designed for labs that work with a diverse range of materials. Whether you are analyzing chemical fluids, raw industrial powders, or solid substrates, the PLS100 delivers ultra-precise dielectric measurements in a single, multi-functional hardware platform.
Key Advantages
- True Tri-State Compatibility: One system, three applications. Seamlessly switch between testing liquids, powders, and solids without needing dedicated hardware for each state.
- Direct Powder Analysis: Eliminate the time-consuming curing and binding process. Our unique design allows for direct measurement of raw powders, preserving the material's original state and speeding up your R&D cycle.
- Scientific-Grade Resolution: Achieve world-class precision with loss tangent (Df) resolution down to the millionths place (0.000001), ideal for identifying the purity and quality of low-loss materials.
- Global Instrument Synergy: Fully compatible with all major Vector Network Analyzers (VNA), including Keysight, Rohde & Schwarz (R&S), and Anritsu, ensuring a smooth fit into your existing laboratory infrastructure.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Spectrum | 6 GHz – 14 GHz |
| Dielectric Constant (Dk) | Range: 2.0 – 10.0 (Accuracy: ±1.0%) |
| Dissipation Factor (Df) | Magnitude of 1.0×10−4 |
| Sample Volume/Mass | 10 mL – 15 mL (or grams) |
| Measurement Mode | TE01x Resonant Mode |
