SPDR – Split Post Dielectric Resonator
The Industry Benchmark for High-Q Precision Dielectric Analysis

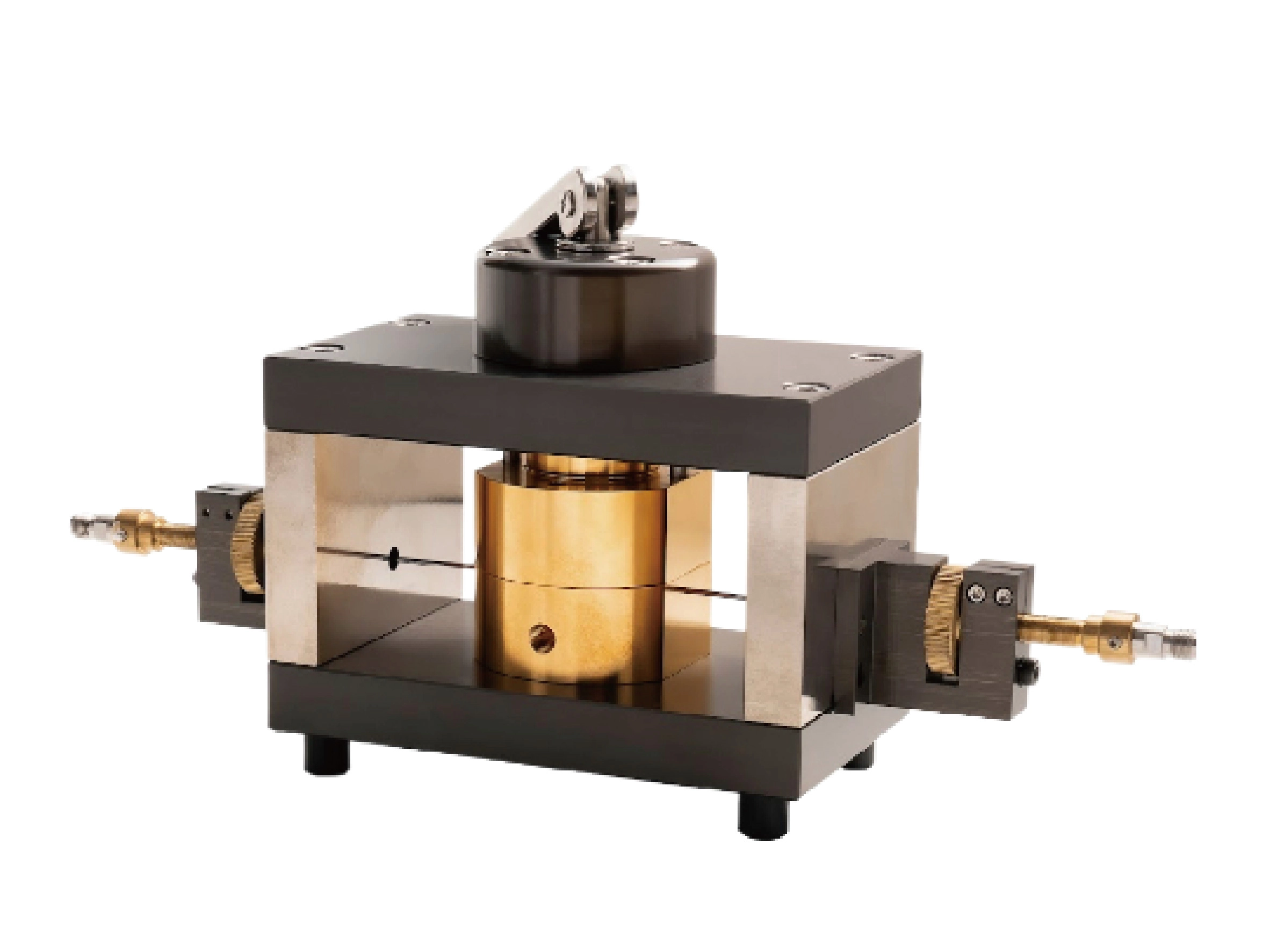

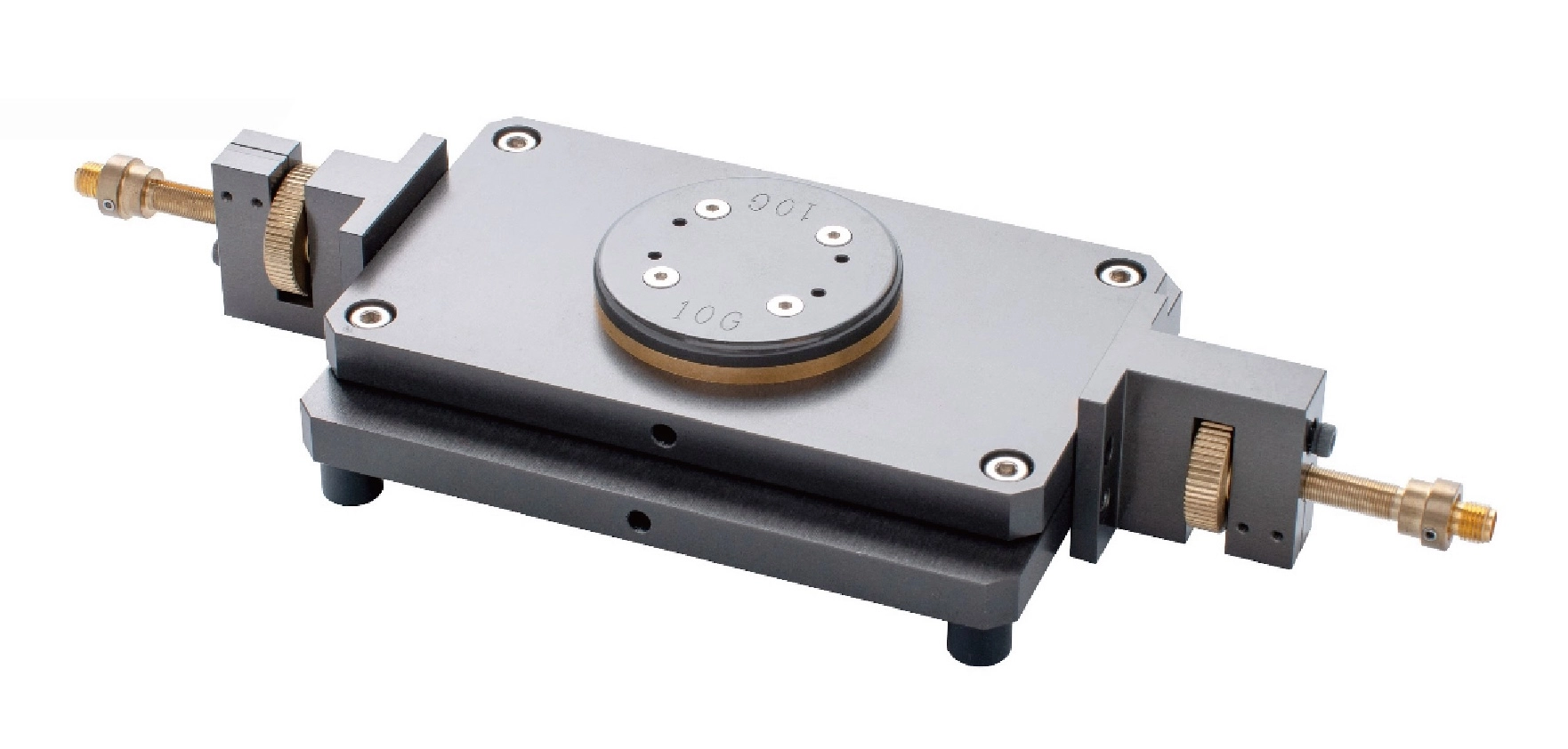

The WaveRay® SPDR series utilizes ultra-high-Q ceramic disk resonators to provide the most accurate complex permittivity measurements available for sheet materials. By isolating the ceramic discs from the metal shielding using low-loss dielectric supports, the SPDR achieves an intense, concentrated electromagnetic field—delivering unmatched sensitivity and data integrity.
Why Choose the SPDR?
- Elite Precision with High Q-Factors: With Q-factors exceeding 10,000, our SPDRs provide ultra-stable resonance for the highest possible accuracy in Dk/Df extraction.
- Nondestructive & Direct: Measure your samples in their native state without damage. Our proprietary software performs full permittivity extraction—no cumbersome lookup tables required.
- Specialized Specimen Stability: We provide customized tension strips for flexible materials, ensuring a perfectly flat Device Under Test (DUT) surface for flawless measurement consistency.
- Global Standard Compliance: Fully compliant with IEC 61189-2-721 and IPC-TM-650 2.5.5.15, making it the primary choice for certified material benchmarking.
- Tailored Engineering: Beyond our standard 1 GHz to 20 GHz range, we offer customized frequency builds and bespoke software interface designs to match your lab's specific workflow.
Product Designations
| Frequency | Model Number | Quality (Q) Factor |
|---|---|---|
| 1 GHz | WR-SPDR-1G | > 10,000 |
| 2.4 GHz | WR-SPDR-2.4G | > 10,000 |
| 5 GHz | WR-SPDR-5G | > 10,000 |
| 10 GHz | WR-SPDR-10G | > 10,000 |
| 20 GHz | WR-SPDR-20G | > 10,000 |
| (Custom frequencies available upon request) |
Technical Specifications
- Frequency Spectrum: 1 GHz – 20 GHz
- Accuracy (Dk): Range 2.0 – 10.0 (Tolerance ±1.0%)
- Precision (Df): Magnitude of 1.0×10−4
- Sample Versatility: Supports thicknesses from 5 μm to 750 μm (frequency dependent)
- Thermal Range: Stable operation from 0°C to 110°C
- VNA Compatibility: Seamlessly integrates with Keysight, R&S, Anritsu, and more.
