SCRN - Ultra-High Frequency Resonator
10~84GHz variable temperature Dk ,Df testing of Low-dielectric material.
Precision Dk/Df Characterization for the 5G/6G Era

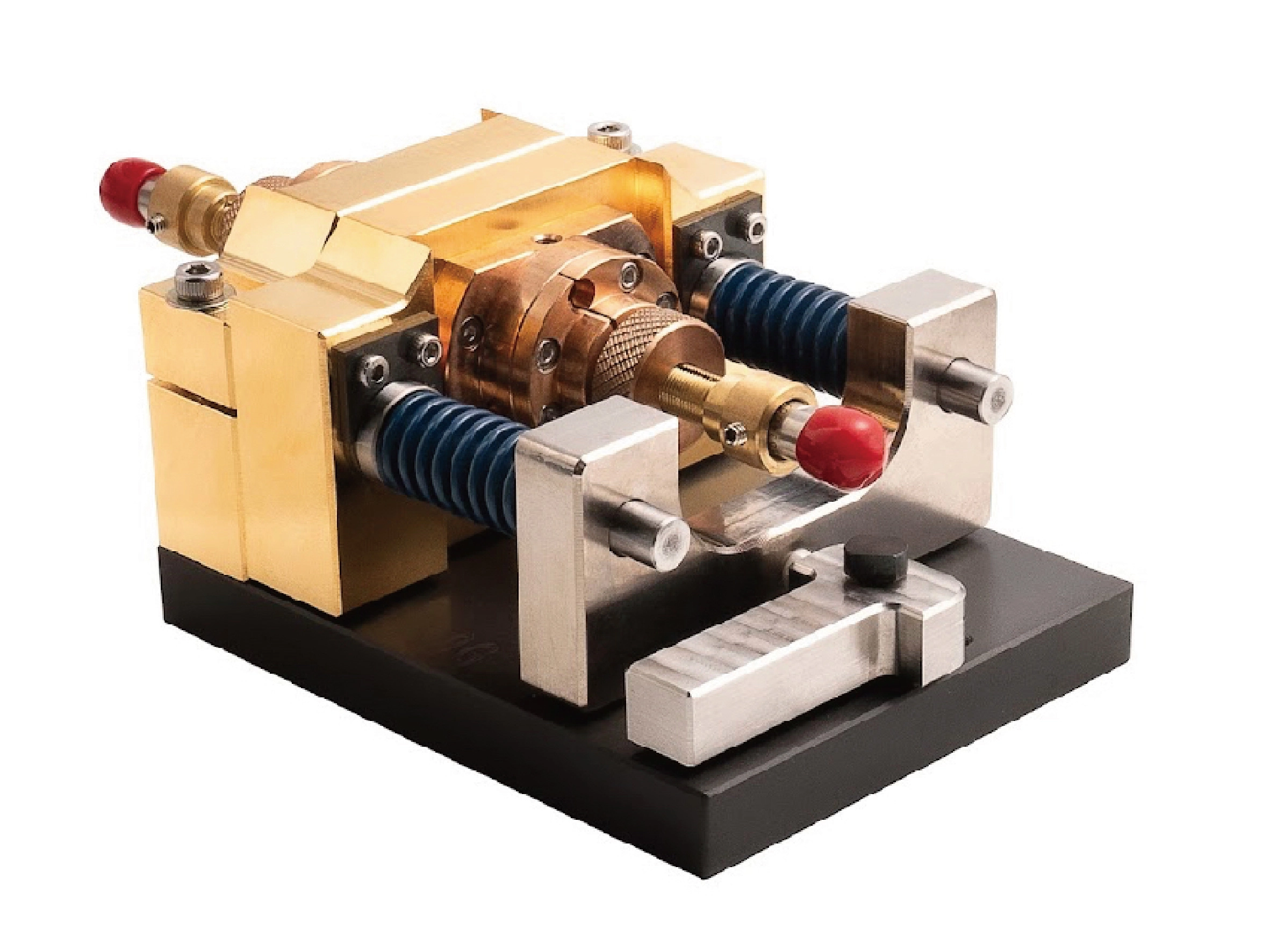

Our Split Cylinder Resonator (SCRN) system is engineered for the most demanding dielectric material analysis. Designed for seamless integration into existing lab workflows, it delivers laboratory-grade accuracy for low-loss materials across the millimeter-wave spectrum.
Core Capabilities
- Dual-State Verification: Delivers precise, real-time frequency measurements for both empty cavity and loaded samples to ensure absolute data integrity.
- Extreme Precision: Achieve industry-leading loss tangent (Df) resolution down to 0.00001, allowing for the detection of even the most subtle material inconsistencies.
- Broad VNA Compatibility: Engineered for plug-and-play synchronization with all major Vector Network Analyzers, including Keysight, Rohde & Schwarz (R&S), and Anritsu.
- Automated Thermal Profiling: When paired with our HT-150-C test chamber, the system performs fully automated testing from -50°C to 150°C, capturing temperature-dependent dielectric shifts without manual intervention.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Spectrum | 10 GHz – 84 GHz |
| Dielectric Constant (Dk) | Range: 2.0 – 10.0 (Accuracy: ±1.0%) |
| Dissipation Factor (Df) | Magnitude of 1.0×10−4 |
| Material Thickness | 0.1 mm – 0.8 mm (Frequency dependent) |
| Specimen Dimensions | 6×5 cm (Optimized per SCRN model) |
| Thermal Range | -50°C to +150°C |
| Global Standards | Fully compliant with IPC-TM-650 2.5.5.13 |
