SLT 2555 – Stripline Test Fixture
The Industry Standard for Z-Axis Dielectric Characterization

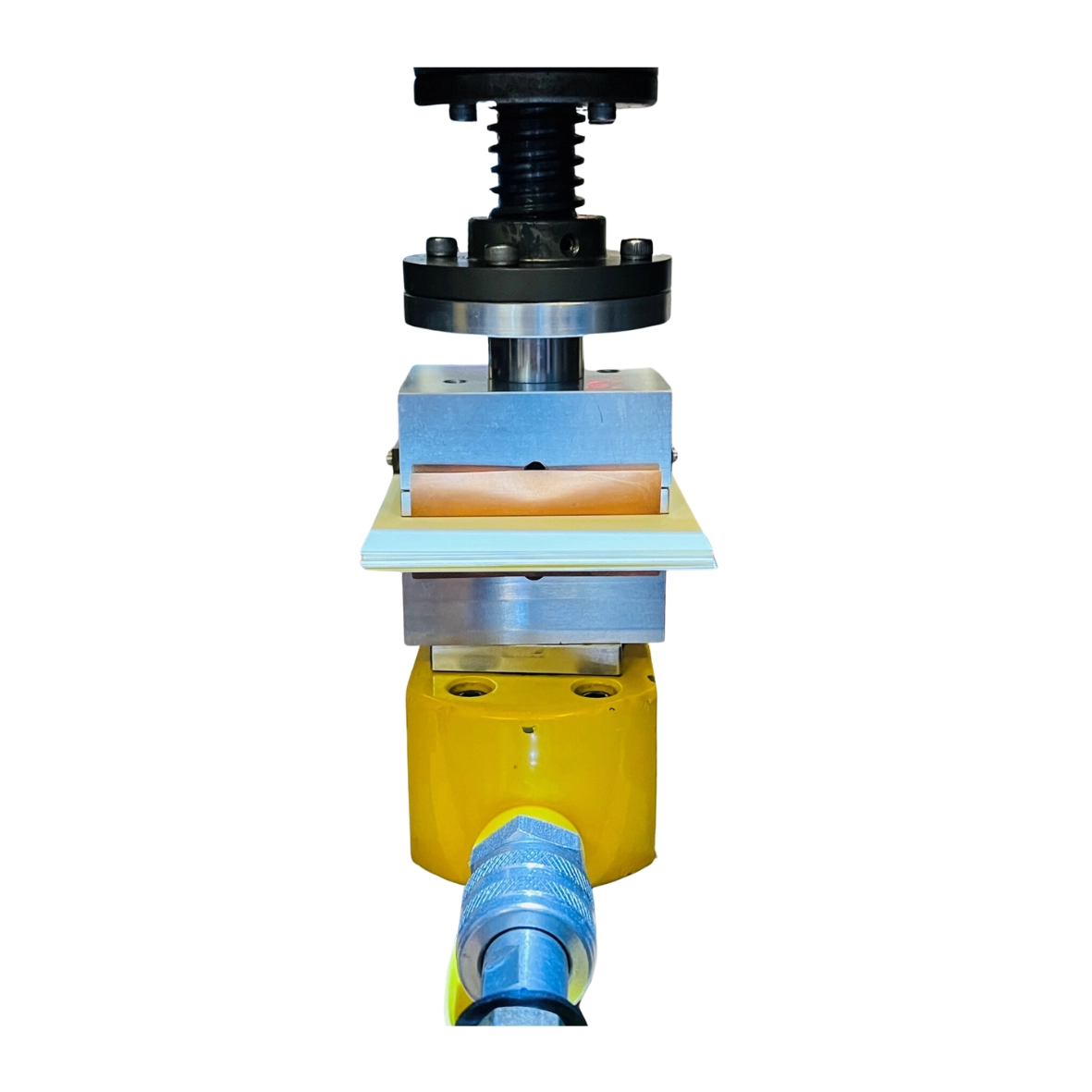

The SLT 2555 is a high-precision Stripline fixture specifically engineered to meet the rigorous demands of the IPC-TM-650 2.5.5.5 standard. By utilizing the same trusted fixture geometry as Rogers Corporation, the SLT 2555 ensures that your material benchmarks are consistent with global industry leaders.
Key Advantages
- Authentic Rogers Test Method: Designed with the exact fixture architecture used by Rogers, providing seamless data correlation and industry-validated results for high-frequency laminates.
- Z-Axis Precision: Optimized for accurate Z-axis permittivity and permeability measurements, critical for high-speed digital and RF design.
- Seamless Instrument Integration: Fully compatible with all major Vector Network Analyzers (VNA), including Keysight, Rohde & Schwarz (R&S), and Anritsu.
- Environmental Stress Testing: When paired with the HT-150-C test chamber, the SLT 2555 supports fully automated dielectric profiling across extreme temperatures from -50°C to 150°C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 2.5 GHz – 13 GHz |
| Dielectric Constant (Dk) | Range: 2.0 – 10.0 (Accuracy: ±1.0%) |
| Dissipation Factor (Df) | Magnitude of 1.0×10−4 |
| Sample Thickness | 0.1 mm – 1.70 mm |
| Thermal Operating Range | -50°C to +150°C |
| Standard Compliance | IPC-TM-650 2.5.5.5 |
